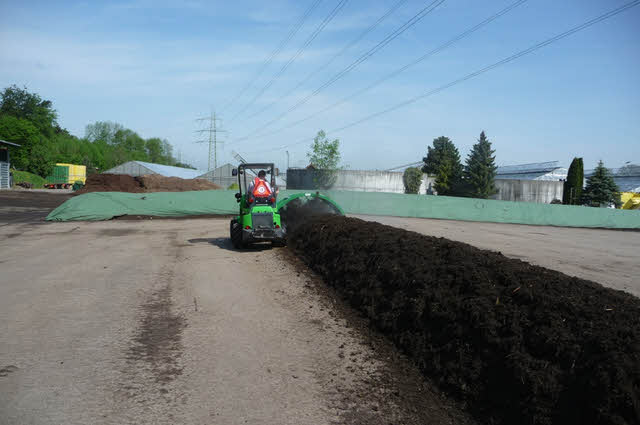

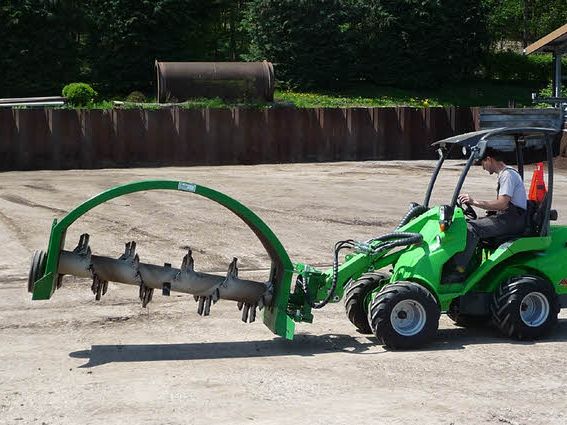

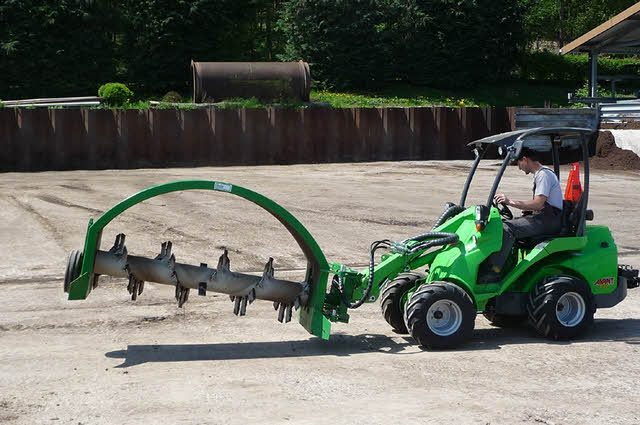

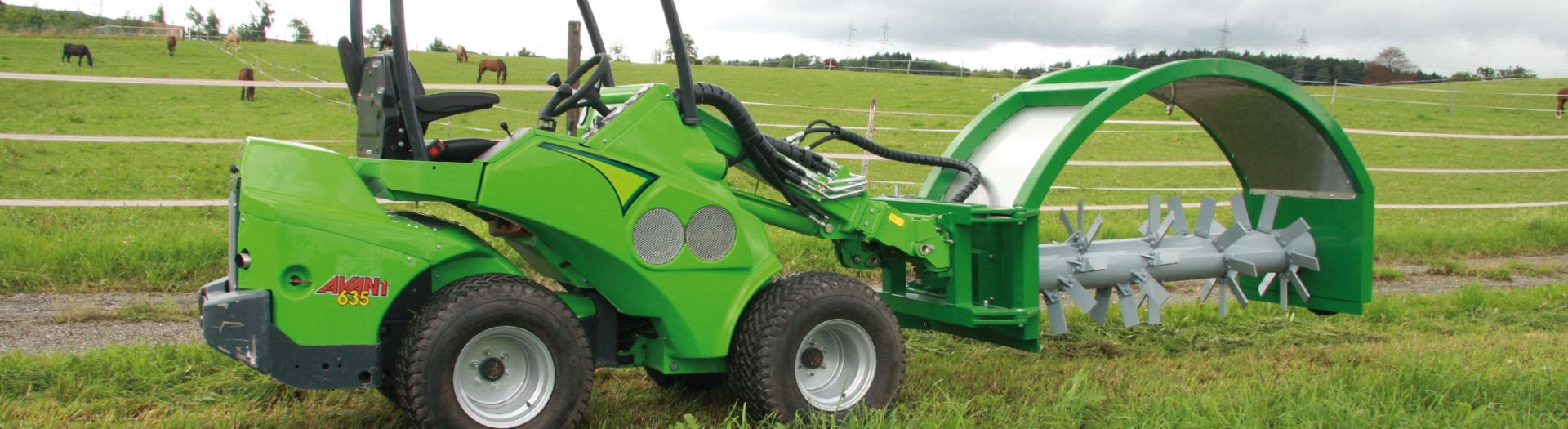

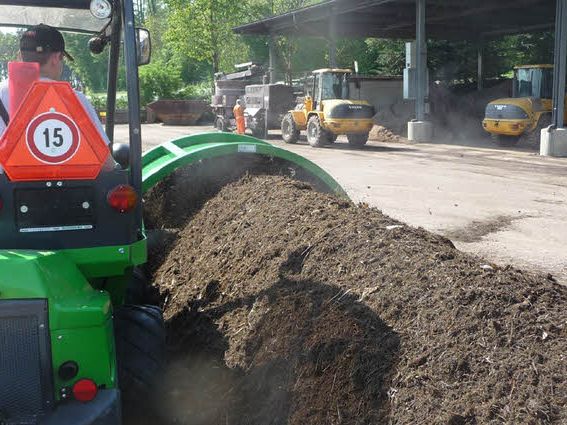

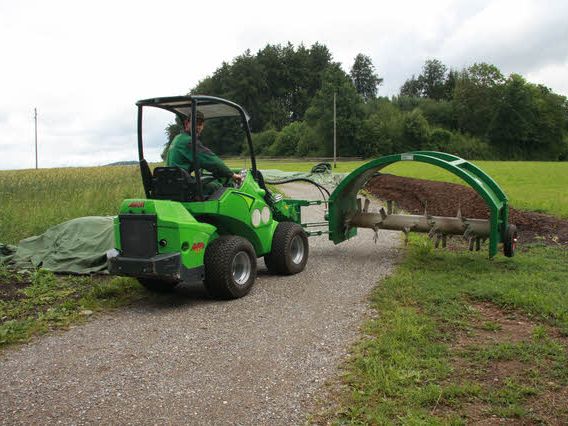

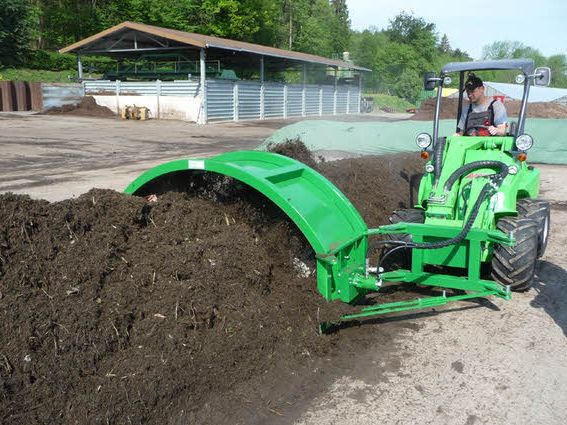

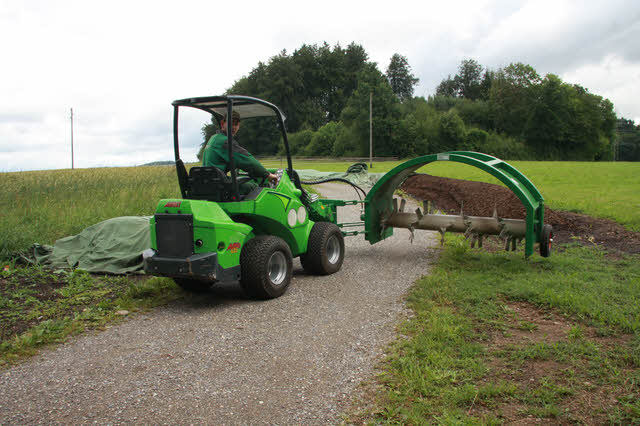

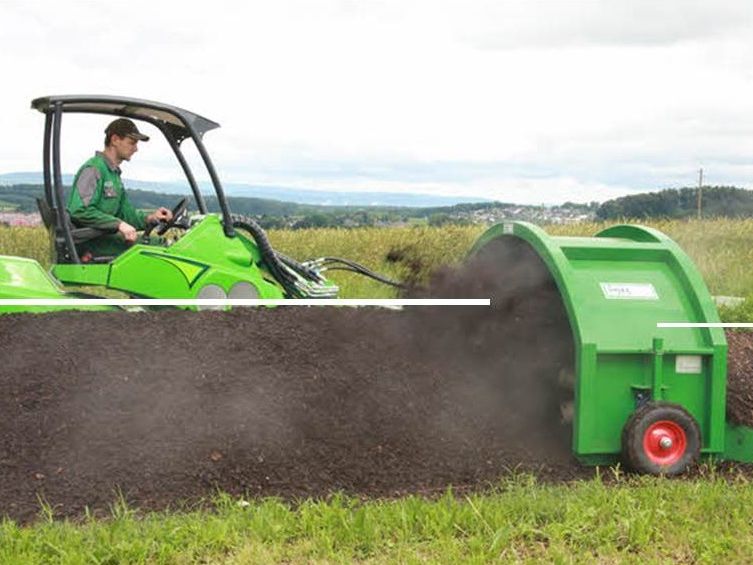

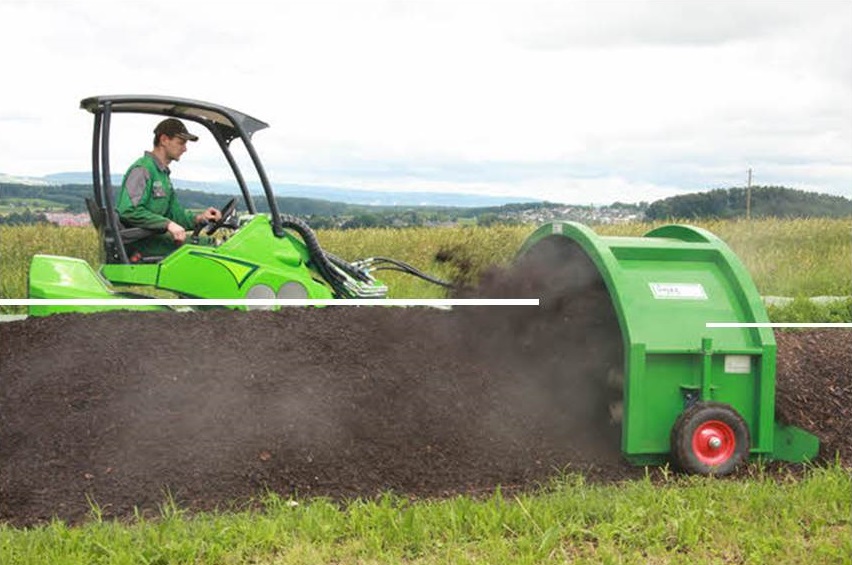

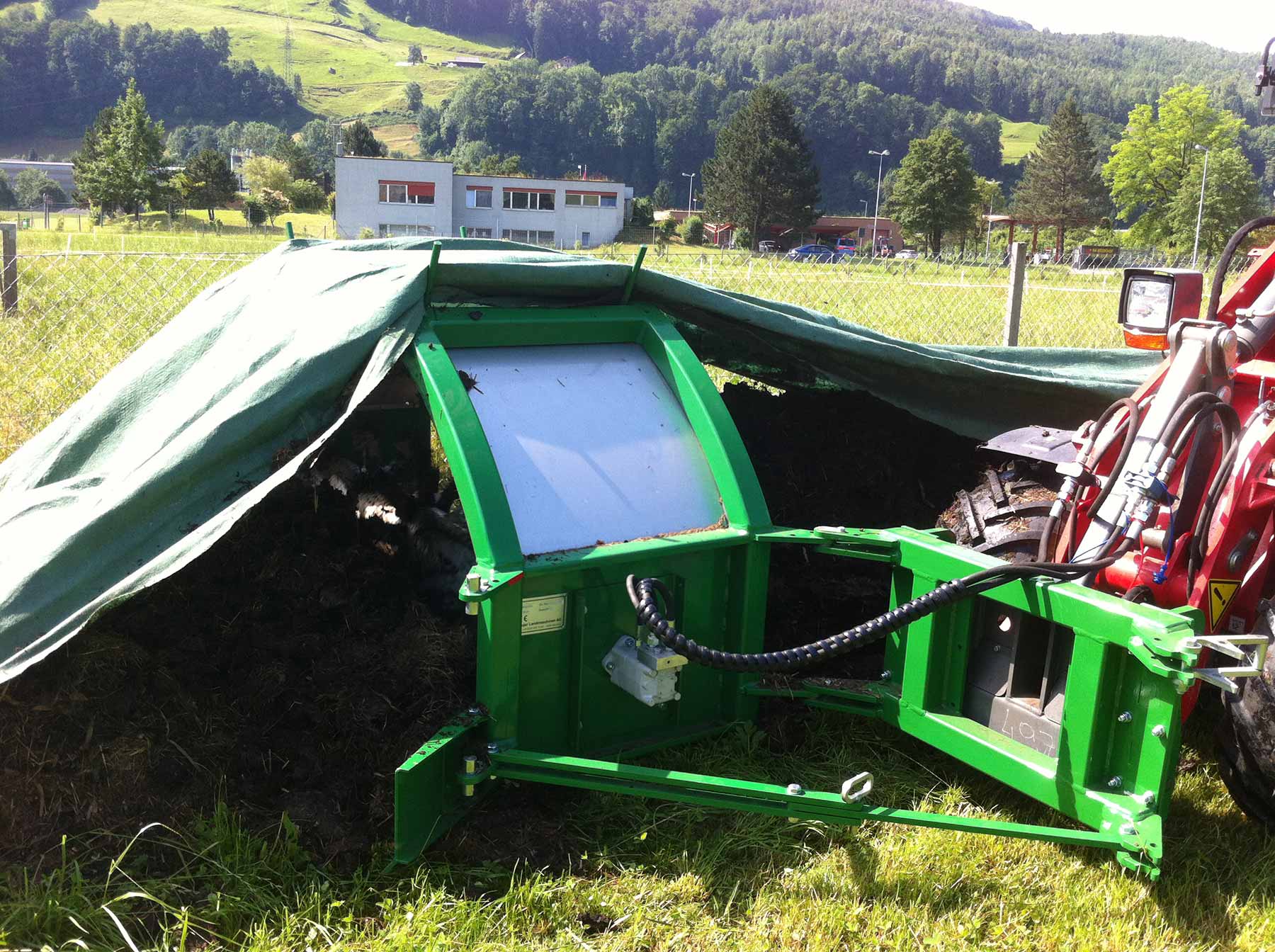

Compost Turner TG 201
The small one with convincing performance on skid steer loaders
Working width: 2.2 metres
Ideal for agriculture, horticulture, organic farms and small communities
- Capacity up to 300 m³/h.
- Maneuverable machine; TG 201 has a length (tranport position) of only 2.7 meters.
- Low maintenance costs, easy maintenance
- Easy to maneuver, simple to use
- The
massive construction of the tunnel-shaped dome and 5 mm steel achieves
great stability and omits any weak points in the structure. In addition
the powder coating protects against corrosion.
- All the wear plates are made of chromed steel

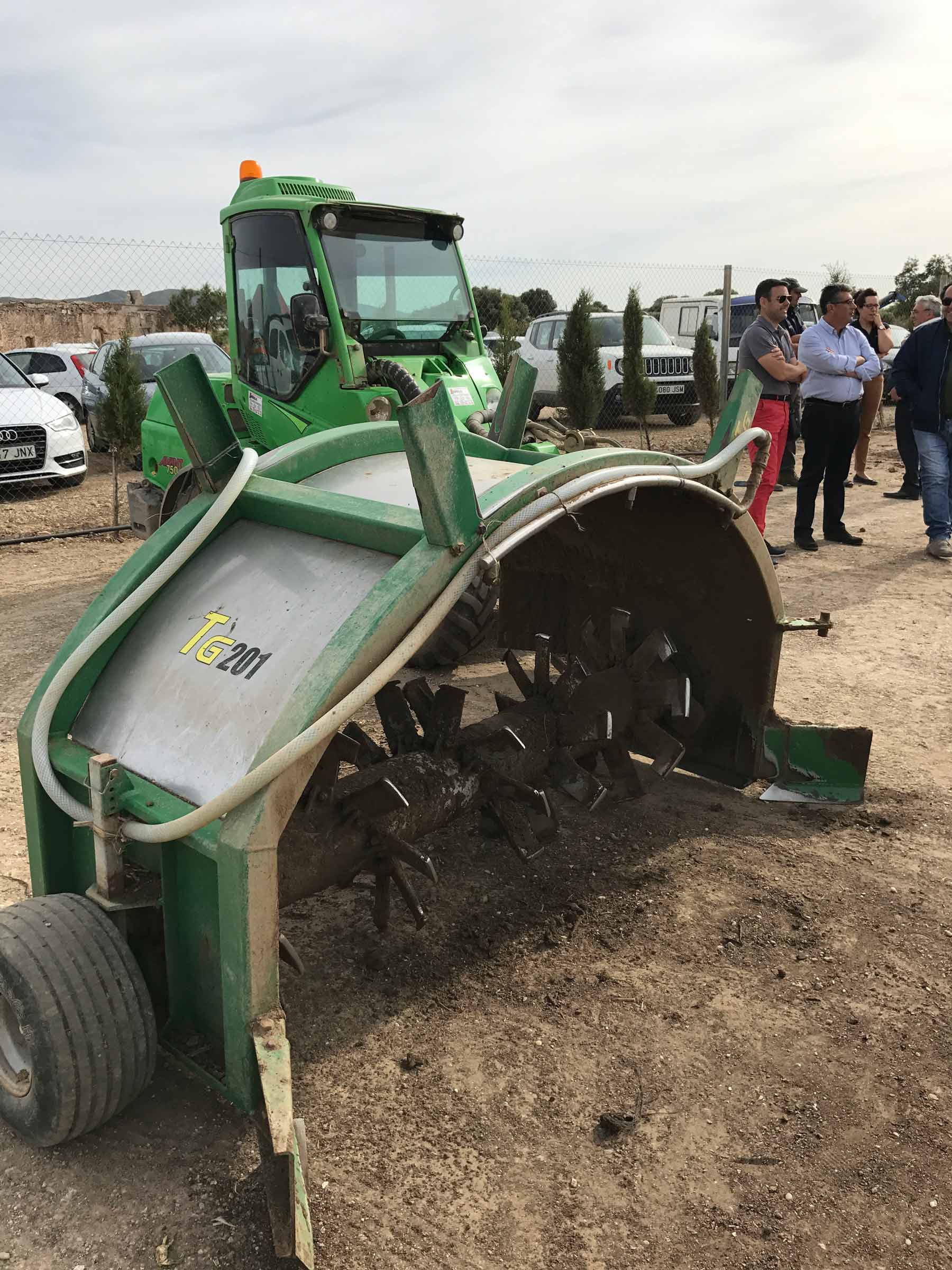

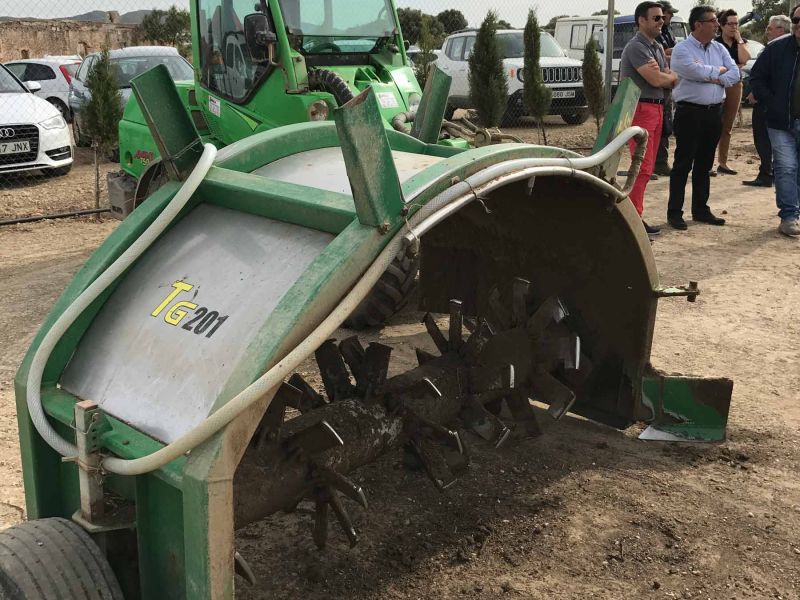

- Robust axel with balanced turning, which properly turns the compost material (from the inside to the outside)

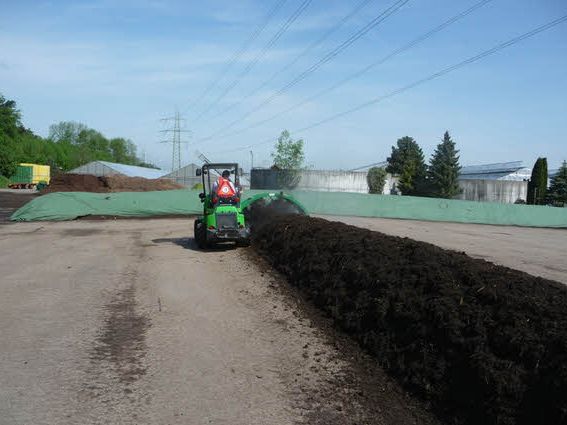

- Fast aerobic composting; within 8 - 12 weeks, depending on the material
Compost Turners

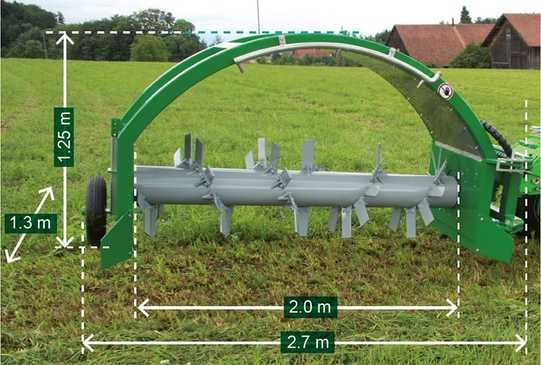

Technical Facts TG 201
- Capacity from 300 m³/h
- Tunnel width 2.0 m
- Total width in transport position 1.3 m
- Working width up to 2.2m
- Total height, transport position 2.7 m
- Internal tunnel height 1.15 m
- Ideal working speed max. 300 m/h
- Weight ca. 600 kg
- Windrow Width x Height 2.0 x 1.0 m
TG 201 Basic equipment, mechanical design
- Tunnel with chrome steel plates
- Support wheel on the outside of the tunnel
- Mechanical feed plates
- Baffle plate nozzles with screw connection (3 pcs.)
Requirements for the Compact Loader
- For compact loaders with total width up to 1.7 m
- For compact loaders from 30 hp / Ideal 35 hp
- The working pressure of the hydraulic system must reach at least 200 bar with at least 40 l of oil per min.
Options for TG 201
- Water spray bar

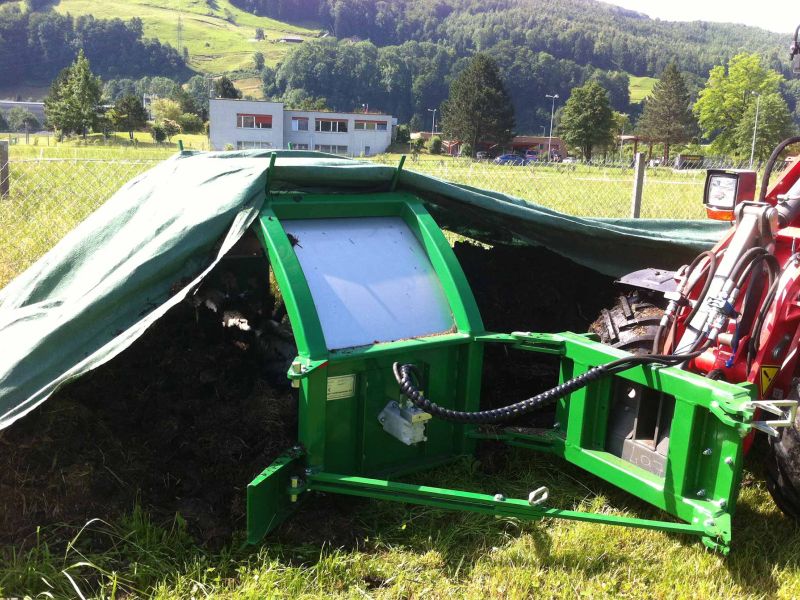

- Fleece guides front and rear
- Faster incl. parking bracket
- Widening plates set *
- Euro mount
- Third-party loader mount
* For machine widths from 1.60 - 2.10 m
